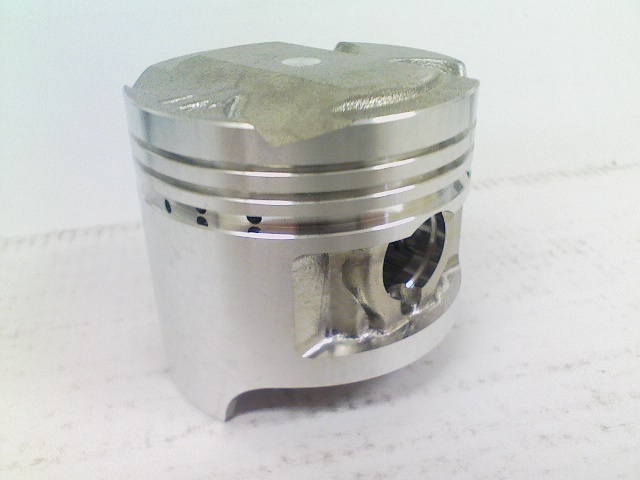

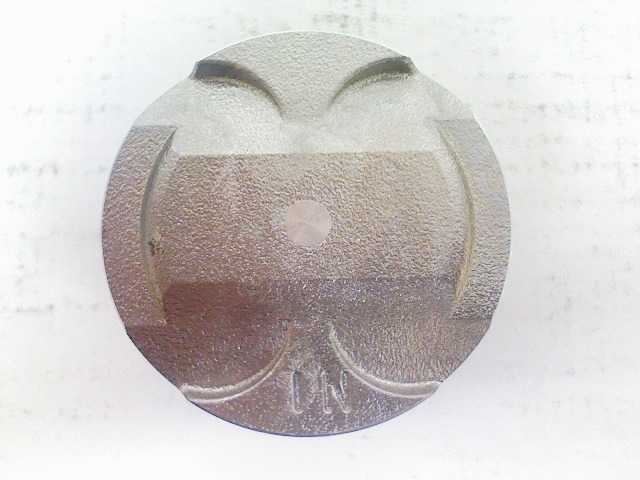

PISTON KIT for HONDA AH1410X

PISTON KIT / MOTORCYCLE*
*
バイクパーツ - CBX-400F
PISTONKIT ZOOM

バイクパーツ - CBX-400F
PISTONKIT ZOOM

バイクパーツ - CBX-400F
PISTONKIT ZOOM
*
PISTON KIT

Representative model of Motorcycle in our list are based on data both of ours and our agency, dealers in each country.

*
PISTON KIT
MODEL
CBX-400F
OEM No. MA6-000
CODE No. AH1410X
BORE(mm) :A 55
LENGTH(mm) :B 51.4
PIN DIA (mm) :C 15
COMPRESSION HIGHT① (mm):D 24.5
COMPRESSION HIGHT② (mm):E 22.8
PIN LENGTH (mm) :F 42
PLATING
STROKE 4
PISTON CODE No. PH1210X
*
*
※This product is for 1 cylinder.
Este producto es para 1 cilindro.
*
Payment/ Delivery Fee & Delivery/ Returns Policy/
PL Policy/ Use of Terms/
*
price:¥9,900(USD) SIZE:




*
