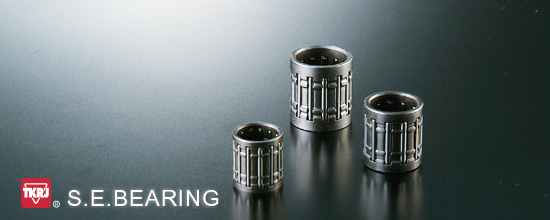

SMALL END BEARING

- MOTORCYCLE -

SMALL END BEARING, attaining stable and powerful performance.

These parts are accepting tons of weight, because they move at amazingly high speed.
High quality is essential for carrying big power to the crank shaft without losing it.
TKRJ bearings efficiently absorb and spread the power, attaining stable and powerful performance.

SMALL END BEARING for HONDA(MOTORCYCLE) PRODUCT LINE-UP

MODEL	OEM	SIZE	CODE No.	TYPE	REMARKS
	91007-360-004	14x18x18.8	HX0135A	HX
	91007-444-004	14x18x19.8	HX0150A	HX
	91007-KA3-761	14x18x18.8	HX0135A	HX
	91015-357-003	18x22x21.8	HX0350A	HX
	91015-KZ3-003	18x22x22.8	HX0370A	HX
	91101-KE1-004	16x20x18.8	HX0250A	HX
	91101-KM9-004	16x20x18.8	HX0250A	HX
	91101-KV3-003	15x19x16.8	HX0190A	HX
	91102-122-004	10x14x12.5	HX0020A	HX
	91102-156-004	12x17x14.2	HX0080A	HX
MB-100/H-100S	91102-168-003	14x19x17.1	HX0180A	HX
	91102-GA7-008	10x14x12.5	HX0020A	HX
NC-50/NH-50	91102-GC7-013	10x14x12.5	HX0020A	HX
NH-80	91102-GC8-003	12x17x14.2	HX0080A	HX
SA-50/TACT	91102-GS7-000	10x14x12.5	HX0020A	HX
	91102-KE6-831	14x19x17.1	HX0180A	HX

Top of page

SMALL END BEARING for YAMAHA(MOTORCYCLE) PRODUCT LINE-UP

MODEL	OEM	SIZE	CODE No.	TYPE	REMARKS
	93310-11201	12x15x14.5	HX0030A	HX
	93310-11202	12x15x16.5	HX0040A	HX
	93310-11268	12x15x16.5	HX0040A	HX
	93310-11281	12x15x16.5	HX0040A	HX
	93310-11296	12x15x14.5	HX0030A	HX
	93310-21038	10x14x12.5	HX0020A	HX
	93310-210MO	10x14x12.5	HX0020A	HX
	93310-212K8	12x16x14.8	HX0060A	HX
	93310-212L6	12x16x15.8	HX0070A	HX
	93310-21403	14x18x16.5	HX0110A	HX
	93310-214F8	14x18x16.5	HX0110A	HX
	93310-214H9	14x18x18.8	HX0135A	HX
	93310-214T1	14x18x16.5	HX0110A	HX
	93310-21606	16x20x16.8	HX0240A	HX
	93310-21607	16x20x18.8	HX0250A	HX
	93310-21636	16x20x18.8	HX0250A	HX
	93310-21680	16x20x19.5	HX0270A	HX
	93310-216A3	16x20x19.5	HX0270A	HX
	93310-216E1	16x20x22.5	HX0300A	HX
	93310-216J2	16x20x19.5	HX0270A	HX
	93310-216L2	16x20x19.5	HX0270A	HX
	93310-21854	18x22x21.8	HX0350A	HX
	93310-21870	16x20x22.5	HX0300A	HX
	93310-21874	18x22x21.8	HX0350A	HX
	93310-218A6	18x22x21.8	HX0350A	HX
	93310-315S4	15x20x17.8	HX0220A	HX
	93310-316H6	16x21x22.5	HX0330A	HX
	93310-316H7	16x21x19.5	HX0320A	HX
	93310-320UO-00	20x25x23.8	HX0460A	HX
	93310-3702	20x25x24.8	HX0470A	HX
	93310-418E9	18x23x21.8	HX0390A	HX
	93310-418H9	18x23x21.8	HX0390A	HX

Top of page

SMALL END BEARING for SUZUKI(MOTORCYCLE) PRODUCT LINE-UP

MODEL	OEM	SIZE	CODE No.	TYPE	REMARKS
	09263-10008	10x14x12.5	HX0020A	HX
	09263-12003	12x16x15.8	HX0070A	HX
	09263-12008	12x16x15.8	HX0070A	HX
	09263-12012	12x16x14.8	HX0060A	HX
	09263-12013	12x16x14.8	HX0060A	HX
	09263-12015	12x16x15.8	HX0070A	HX
	09263-12020	12x16x15.8	HX0070A	HX
	09263-12023	12x16x15.8	HX0070A	HX
	09263-14001	14x18x19.8	HX0150A	HX
	09263-14004	14x18x19.8	HX0150A	HX
	09263-14005	14x18x19.8	HX0150A	HX
	09263-14006	14x18x19.8	HX0150A	HX
	09263-14007	14x18x19.8	HX0150A	HX
	09263-14008	14x18x19.8	HX0150A	HX
	09263-14009	14x18x21.8	HX0160A	HX
	09263-14012	14x18x19.8	HX0150A	HX
	09263-14014	14x18x19.8	HX0150A	HX
	09263-14019	14x18x19.8	HX0150A	HX
	09263-14022	14x18x19.8	HX0150A	HX
	09263-15027	15x19x18.8	HX0200A	HX
	09263-15040	15x19x19.5	HX0210A	HX
RGV250Γ	09263-15041	15x20x19.8	HX0225A	HX
	09263-16001	16x20x19.8	HX0280A	HX
	09263-16003	16x20x19.8	HX0280A	HX
	09263-16004	16x21x19.5	HX0320A	HX
	09263-16005	16x21x19.5	HX0320A	HX
	09263-16011	16x21x19.5	HX0320A	HX
	09263-18002	18x22x21.8	HX0350A	HX
	09263-18005	18x23x23.8	HX0400A	HX
	09263-18006	18x23x23.8	HX0400A	HX
	09263-18008	18x22x21.8	HX0350A	HX
	09263-18010	18x23x21.8	HX0390A	HX
	09263-18011	18x23x21.8	HX0390A	HX
	09263-18015	18x23x23.8	HX0400A	HX
	09263-18016	18x23x21.8	HX0390A	HX
	09263-18021	18x23x23.8	HX0400A	HX

Top of page

SMALL END BEARING for KAWASAKI(MOTORCYCLE) PRODUCT LINE-UP

MODEL	OEM	SIZE	CODE No.	TYPE	REMARKS
	13033-001	12x15x14.5	HX0030A	HX
	13033-002	15x19x18.8	HX0200A	HX
	13033-003	14x18x16.5	HX0110A	HX
	13033-005	16x20x18.8	HX0250A	HX
	13033-007	15x19x18.8	HX0200A	HX
	13033-009	12x16x15.8	HX0070A	HX
	13033-020	18x22x23.8	HX0380A	HX
	13033-023	12x16x15.8	HX0070A	HX
	13033-024	14x18x21.8	HX0160A	HX
	13033-026	14x18x19.8	HX0150A	HX
	13033-028	12x16x15.8	HX0070A	HX
	13033-030	14x18x16.5	HX0110A	HX
	13033-033	14x18x19.8	HX0150A	HX
	13033-034	14x18x21.8	HX0160A	HX
	13033-035	14x18x19.8	HX0150A	HX
	13033-036	18x22x23.8	HX0380A	HX
	13033-037	18x22x21.8	HX0350A	HX
	13033-038	14x18x19.8	HX0150A	HX
	13033-049	14x18x19.8	HX0150A	HX
	13033-1001	16x20x19.5	HX0270A	HX
	13033-1003	14x18x17.2	HX0130A	HX
	13033-1008	15x19x18.8	HX0200A	HX
	13033-1009	12x16x15.8	HX0070A	HX
	13033-1010	18x22x23.8	HX0380A	HX
	13033-1051	16x21x19.5	HX0320A	HX
	13033-1053	14x18x17.2	HX0130A	HX
	13033-1056	16x21x19.5	HX0320A	HX
	13033-3005	16x20x22.5	HX0300A	HX

Top of page

SMALL END BEARING for OTHERS(MOTORCYCLE) PRODUCT LINE-UP

MODEL	OEM	SIZE	CODE No.	TYPE	REMARKS
		13x17x15.2	HX0095A	HX
		15x19x19.5	HX0210A	HX
		14x18x15.8	HX0100A	HX
		12x16x14.8	HX0060X	HX
27-1700	27-1700	18x22x21.8	HX0350A	HX
27-2400 NEW	27-2400NEW	16x20x19.8	HX0280A	HX
27-2400 OLD	27-2400OLD	16x20x19.8	HX0280A	HX
27-2600 NEW	27-2600NEW	16x20x19.8	HX0280A	HX
	91103-KZ4-B01	15X19X17.3	HX0195A	HX

Top of page
