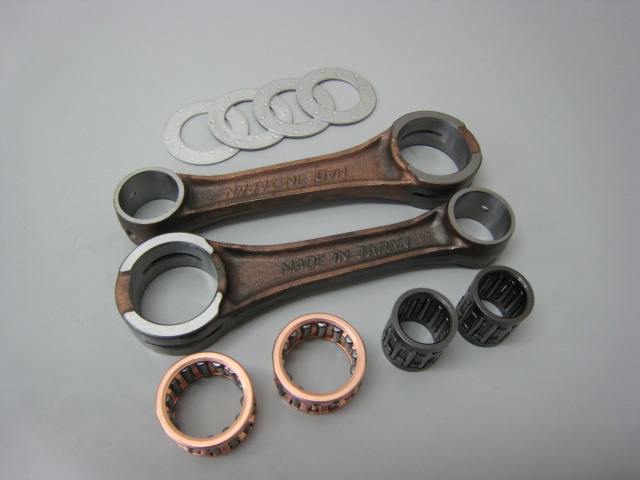

CONNECTING ROD KIT for YAMAHA BY0355B

CONNECTING ROD KIT / MOTORCYCLE*
*
バイクパーツ - RD-350YPVS W/W
CONNECTINGRODKIT ZOOM

*
CONNECTING ROD KIT

Representative model of Motorcycle in our list are based on data both of ours and our agency, dealers in each country.

*
CONNECTING ROD KIT
MODEL
 RD-350YPVS W/W
RZ-350R,RR
OEM No. 29L
CODE No. BY0355B

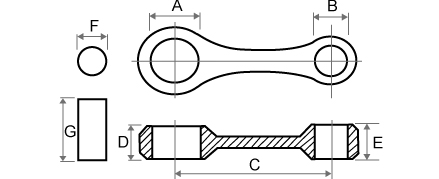

B.E.BEARING DIA (mm)：Ａ 29.0
S.E.BEARING DIA (mm)：Ｂ 21.0
B.E.& S.E. PITCH (mm)：Ｃ 110.0
B.E.THICKNESS (mm)：Ｄ 17.0
S.E.THICKNESS （mm)：Ｅ 18.0
CRANK PIN DIA (mm)：Ｆ
CRANK PIN LENGTH (mm)：Ｇ
STROKE 2
CON,ROD CODE No. CY0350X
*
*
※This product is for 1 cylinder.
Este producto es para 1 cilindro.
*





*
